Kick plate

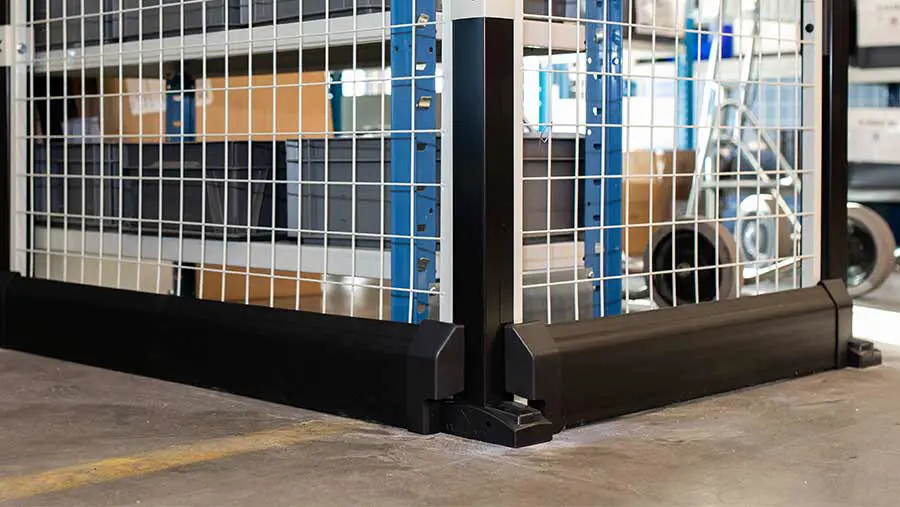

We offer two different packages of Kick plates, one for panels and one for doors.  This Kick plate fits: X-Rail X-Guard Lite, Classic and Premium X-Store 2.0

Read more
Get your quote now
Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

Models

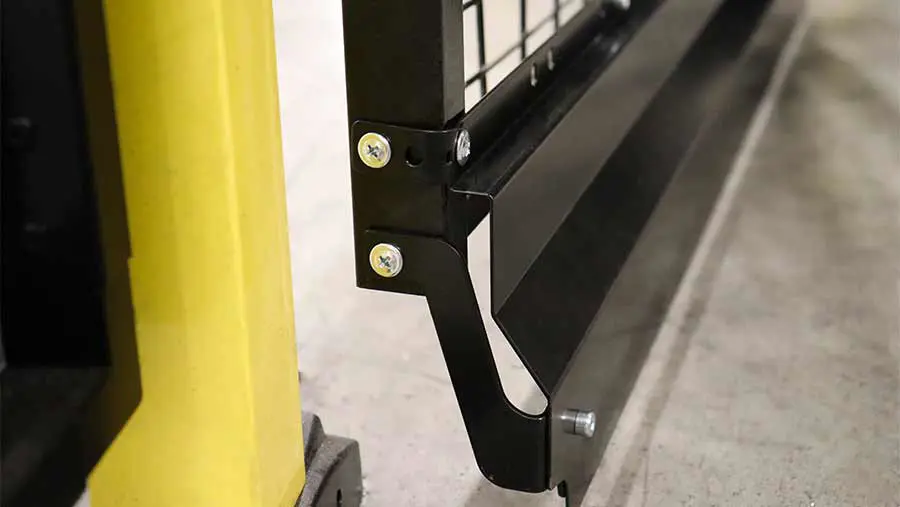

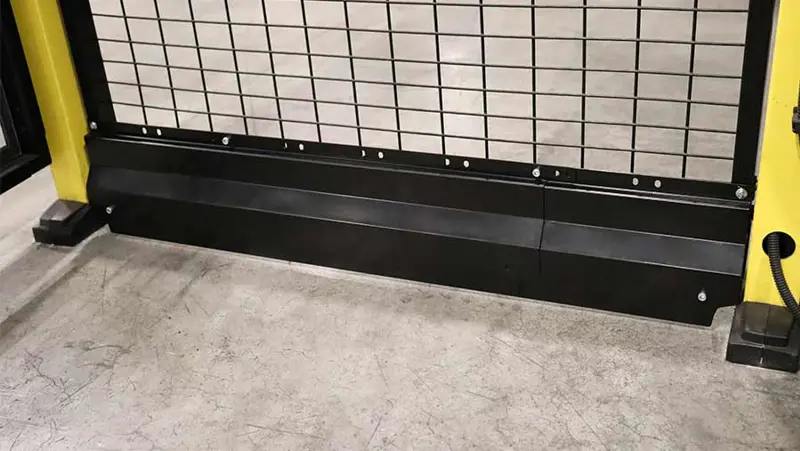

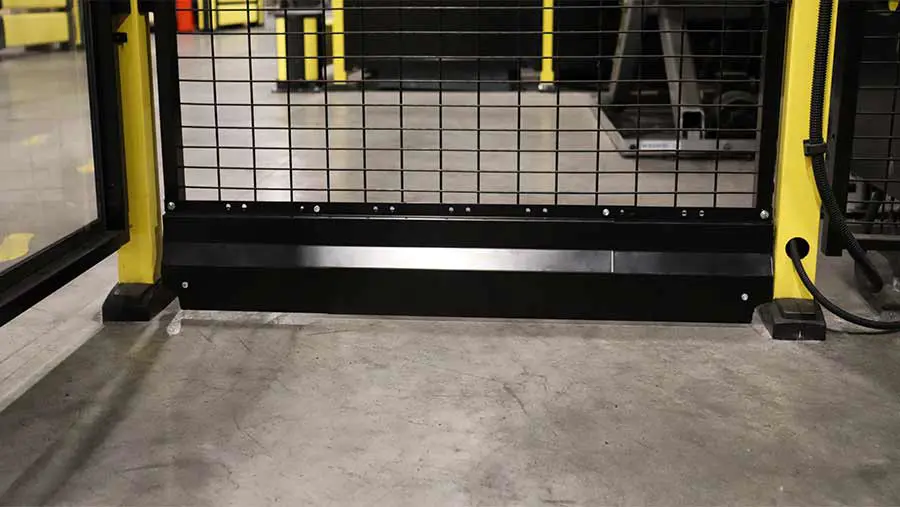

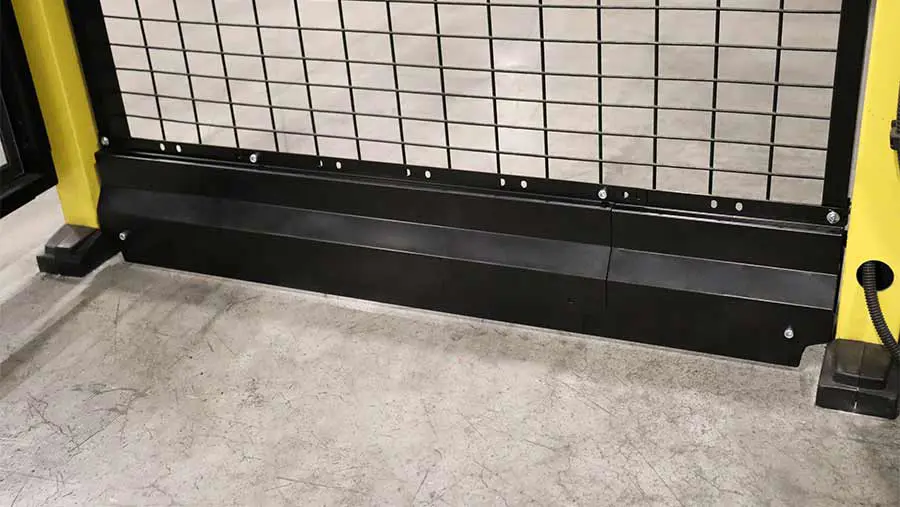

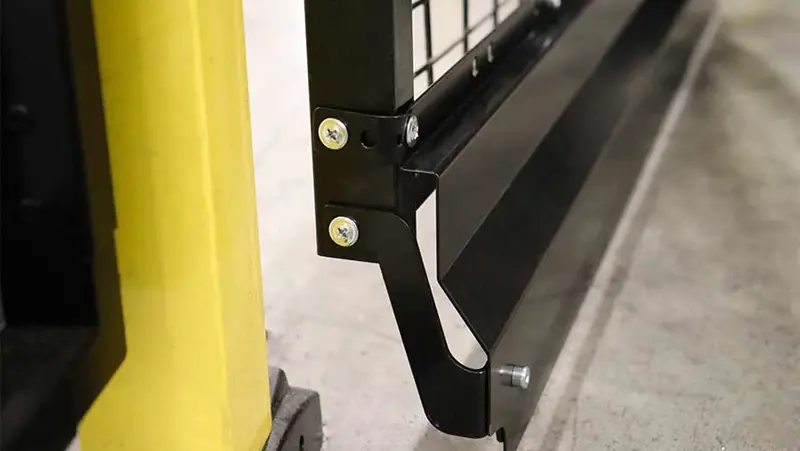

  • Kick plate for doors

    30 Articles
    CAD Article Description Width (mm) Min Width (mm) Max Width (mm)
    		T25-900-02 Kick plate suitable for doors D12, D22, D42 700 900
    1 1
    		T25-900-01 Kick plate suitable for doors D10, D11, D20 700 900
    1 1
    		T25-6000-01 Kick plate suitable for doors D20, D40 5600 6000
    1 1
    		T25-5500-01 Kick plate suitable for doors D20, D40 5300 5500
    1 1
    		T25-5200-01 Kick plate suitable for doors D20, D40 4700 5200
    1 1
    		T25-4600-01 Kick plate suitable for doors D20, D40 4400 4600
    1 1
    		T25-4300-01 Kick plate suitable for doors D20, D40 4100 4300
    1 1
    		T25-4000-01 Kick plate suitable for doors D20, D40 3800 4000
    1 1
    		T25-3700-01 Kick plate suitable for doors D20, D40 3500 3700
    1 1
    		T25-3400-02 Kick plate suitable for doors D22, D42, D47-XXX580 2900 3400
    1 1
    		T25-3400-01 Kick plate suitable for doors D20, D40, D46 2900 3400
    1 1
    		T25-2800-02 Kick plate suitable for doors D22, D42 2500 2800
    1 1
    		T25-2800-01 Kick plate suitable for doors D20, D40 2500 2800
    1 1
    		T25-2400-02 Kick plate suitable for doors D22, D42 2100 2400
    1 1
    		T25-2400-01 Kick plate suitable for doors D20, D40 2100 2400
    1 1
    		T25-2000-02 Kick plate suitable for doors D22, D42 2000
    1 1
    		T25-2000-01 Kick plate suitable for doors D20, D40 2000
    1 1
    		T25-1900-02 Kick plate suitable for doors D22, D42 1600 1900
    1 1
    		T25-1900-01 Kick plate suitable for doors D20, D40 1600 1900
    1 1
    		T25-1500-05 Kick plate suitable for door D32 1100 1500
    1 1
    		T25-1500-04 Kick plate suitable for door D30 1100 1500
    1 1
    		T25-1500-03 Kick plate suitable for doors D23 & D43 Tripple 1100 1500
    1 1
    		T25-1500-02 Kick plate suitable for doors D12, D22, D27, D23 & D43 Double 1100 1500
    1 1
    		T25-1500-01 Kick plate suitable for doors D26, D46 1100 1500
    1 1
    		T25-1000-06 Kick plate suitable for door D32 700 1000
    1 1
    		T25-1000-05 Kick plate suitable for door D30 700 1000
    1 1
    		T25-1000-04 Kick plate suitable for doors D23 & D43 Tripple 700 1000
    1 1
    		T25-1000-03 Kick plate suitable for doors D23 & D43 Double 700 1000
    1 1
    		T25-1000-02 Kick plate suitable for doors D12, D22, D27, D42 1000
    1 1
    		T25-1000-01 Kick plate suitable for doors D10, D11, D20 1000
    1 1
    View more View less

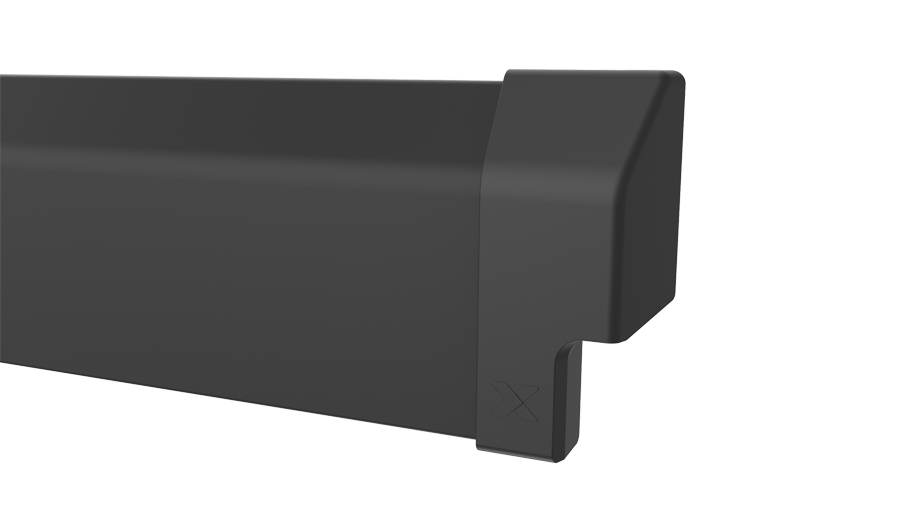

  • Kick plate for panels

    4 Articles
    CAD Article Description Length (mm)
    		T08-3-150RE Kick plate 1500
    		T08-3-150 Kick plate 1500

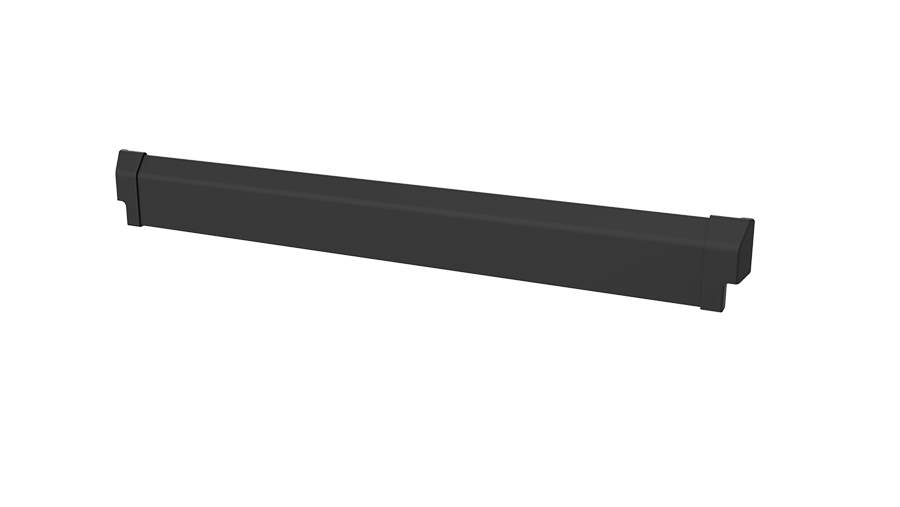

    		T08-3-100RE Kick plate 1000
    		T08-3-100 Kick plate 1000
    View more View less
CAD Article Description
B00-057 Inner corner bracket to Kick plate
3
View more View less

Downloads

Kick plate

Product information

Kick plate

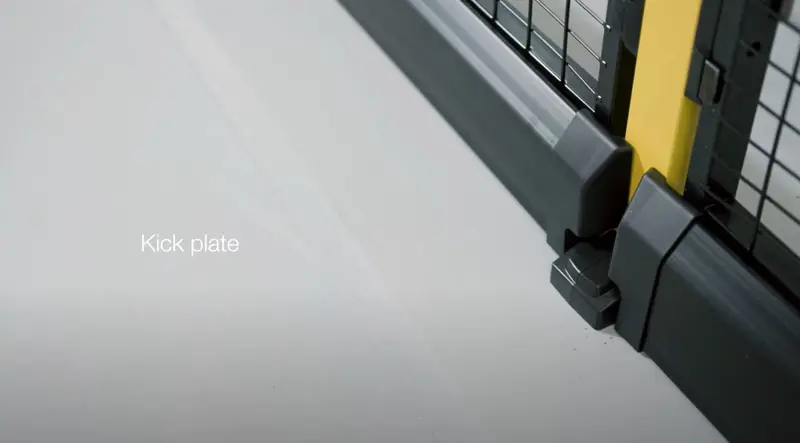

Assembly instruction

X-Guard Technical

Brochure

Product information

We offer two different packages of Kick plates, one for panels and one for doors.

This Kick plate fits:

    • X-Rail
    • X-Guard Lite, Classic and Premium
    • X-Store 2.0

The Kick plate for panels is available in lengths of 1000 mm and 1500 mm, for other lengths the plate has to be cut into the proper length on site during assembly.

Kick plate for doors comes in length 1000 mm and 600 mm and will send out in different packages to fulfil the opening width of the different doors.

View more View less
