Doors

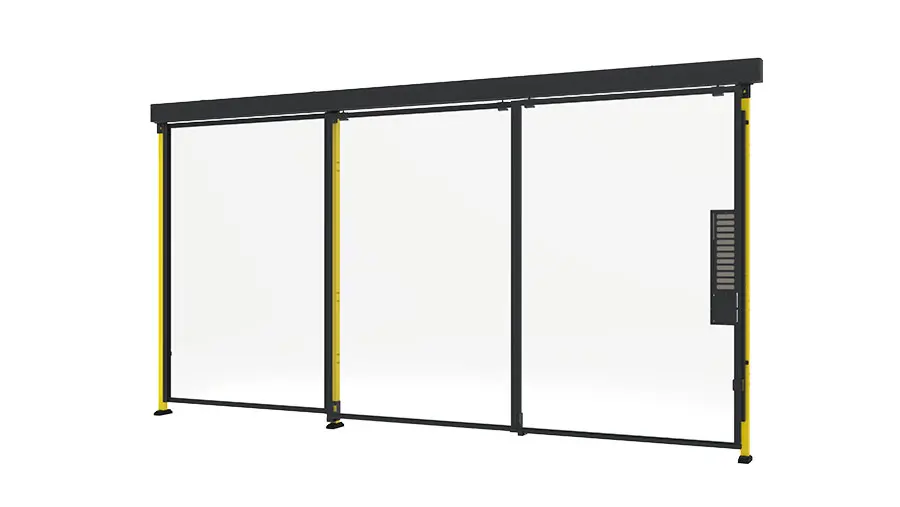

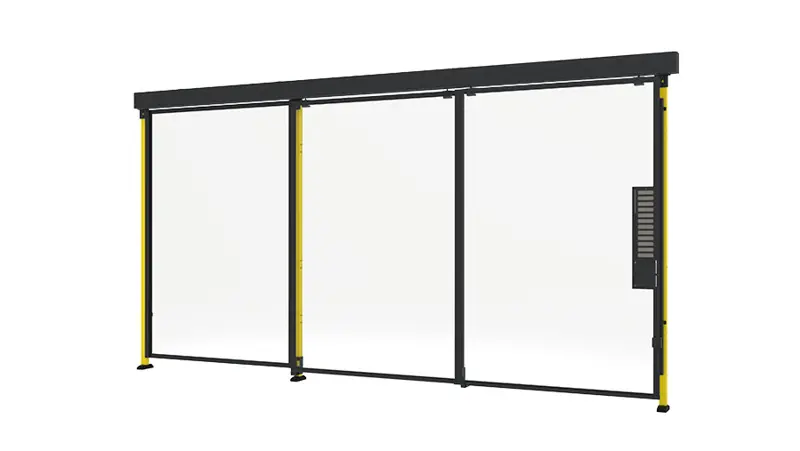

Double sliding door with 2-step rail

3D

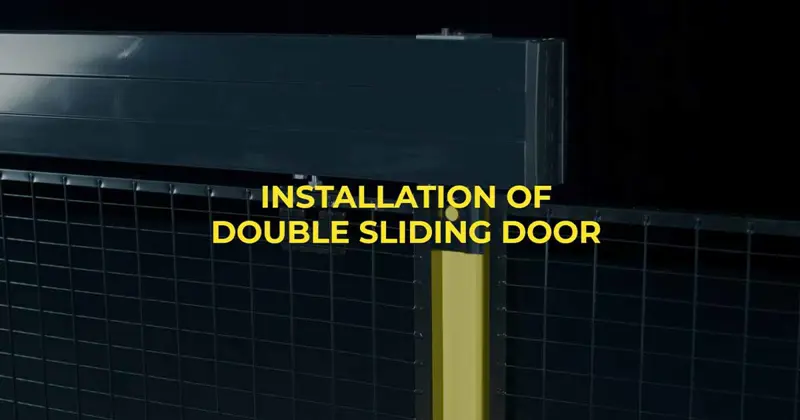

A double telescopic sliding door with rails is used where a large opening is required but where space is limited in the sideways direction. The panels overlap each other instead sliding to the side.

Get your quote now
Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

Models

  • Height 2000 mm

    4 Articles
    CAD Article Description Max Opening Width (mm) Max Height (mm) Panel Fits Posts
    D23-200300R Double sliding door with 2-step rail 2880 2000 Mesh Classic 50x50
    1 2
    D23-200300L Double sliding door with 2-step rail 2880 2000 Mesh Classic 50x50
    2
    D43-200300L Double sliding door with 2-step rail 2900 2000 Mesh Premium 70x70
    2
    D43-200300R Double sliding door with 2-step rail 2900 2000 Mesh Premium 70x70
    2
  • Height 2300 mm

    4 Articles
    CAD Article Description Max Opening Width (mm) Max Height (mm) Panel Fits Posts

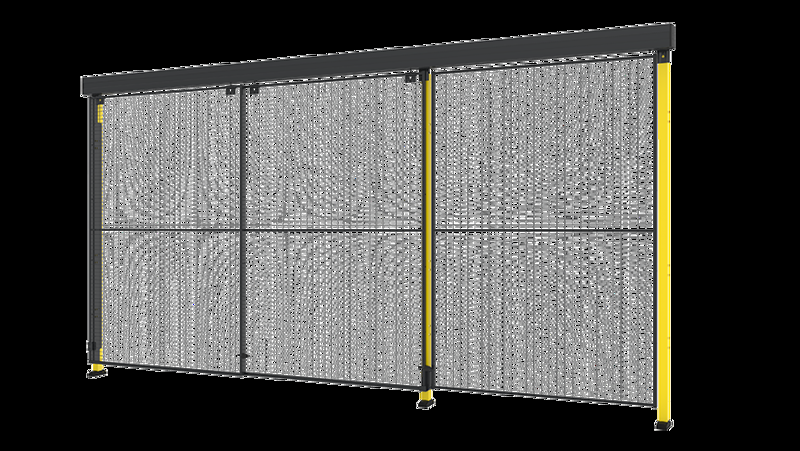

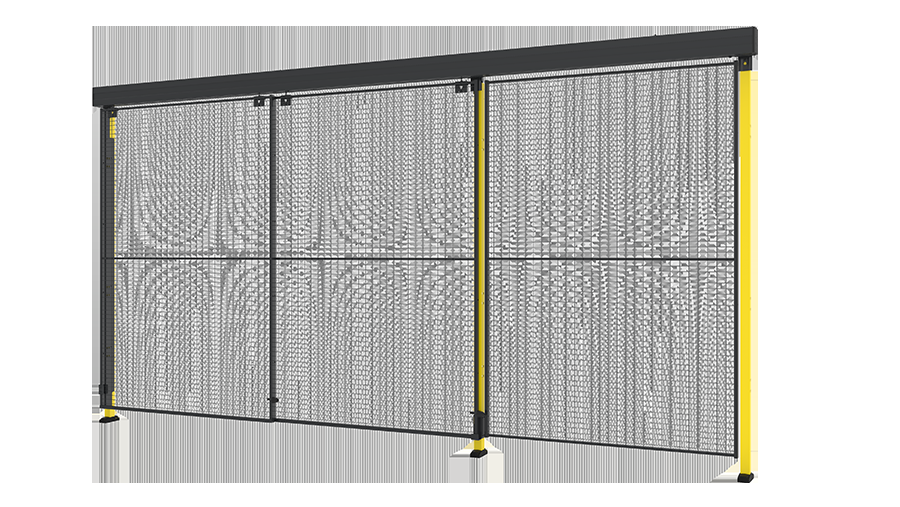

    D23-230300R Double sliding door with 2-step rail 2880 2300 Mesh
    Plastic
    Sheet metal
    Classic 50x50
    2 2

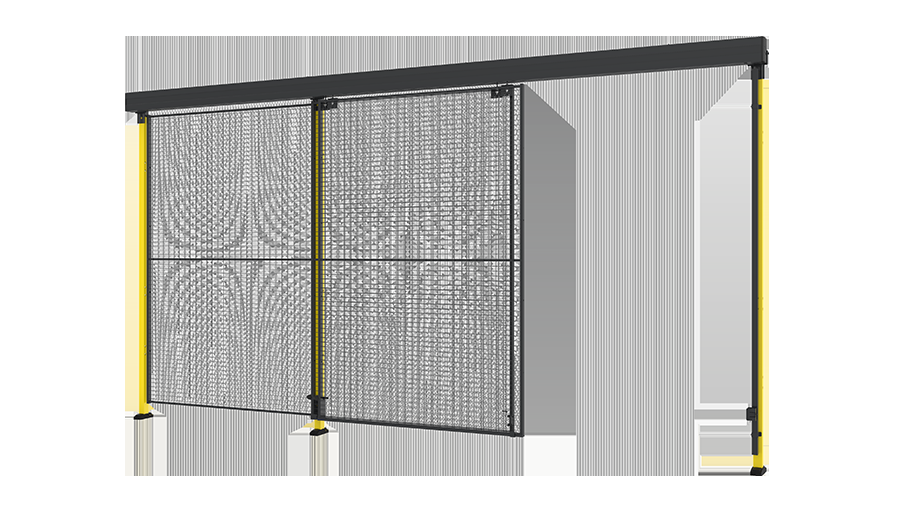

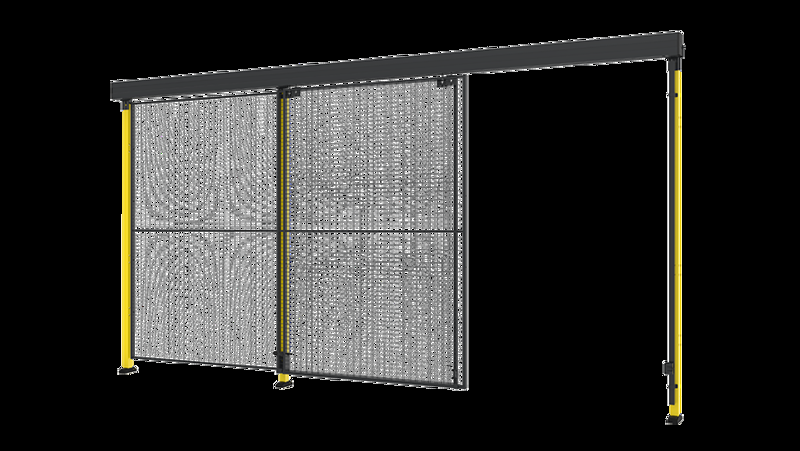

    D23-230300L Double sliding door with 2-step rail 2880 2300 Mesh
    Plastic
    Sheet metal
    Classic 50x50
    3 2
    D43-230300L Double sliding door with 2-step rail 2900 2300 Mesh
    Plastic
    Sheet metal
    Premium 70x70
    5 2
    D43-230300R Double sliding door with 2-step rail 2900 2300 Mesh
    Plastic
    Sheet metal
    Premium 70x70
    5 2
  • Height 2500 mm

    4 Articles
    CAD Article Description Max Opening Width (mm) Max Height (mm) Panel Fits Posts
    D23-250300L Double sliding door with 2-step rail 2880 2500 Mesh Classic 50x50
    2
    D23-250300R Double sliding door with 2-step rail 2880 2500 Mesh Classic 50x50
    2
    D43-250300L Double sliding door with 2-step rail 2900 2500 Mesh Premium 70x70
    2
    D43-250300R Double sliding door with 2-step rail 2900 2500 Mesh Premium 70x70
    2

Downloads

X-Guard Technical

Brochure

Product information

A double telescopic sliding door with rails is used where a large opening is required but where space is limited in the sideways direction. The panels overlap each other instead sliding to the side.

Maximum height is 2500 mm and maximum width is 2x1500 mm. *The maximum width varies depending on the used locking solution.

(Posts, handles and panels are not included in the door package. Opening dimensions may be limited depending on the type of lock chosen.)
