Impact barriers

Impact high

3D

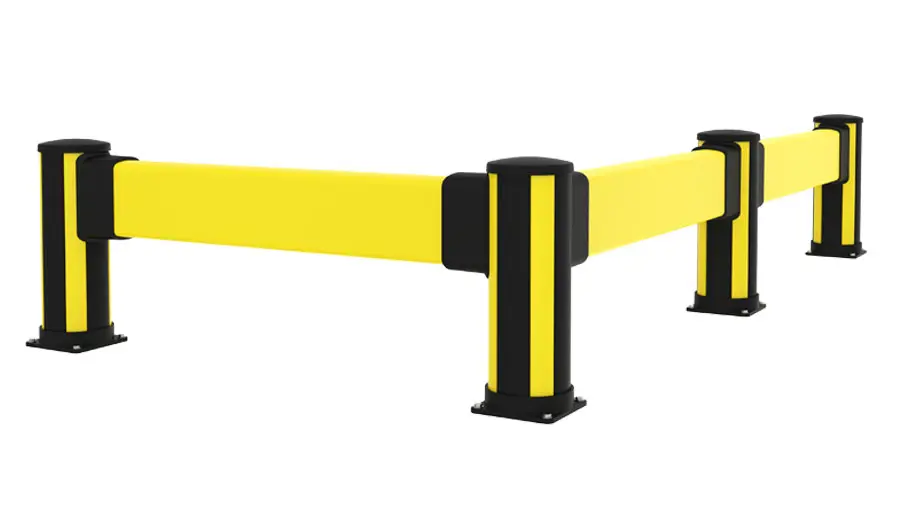

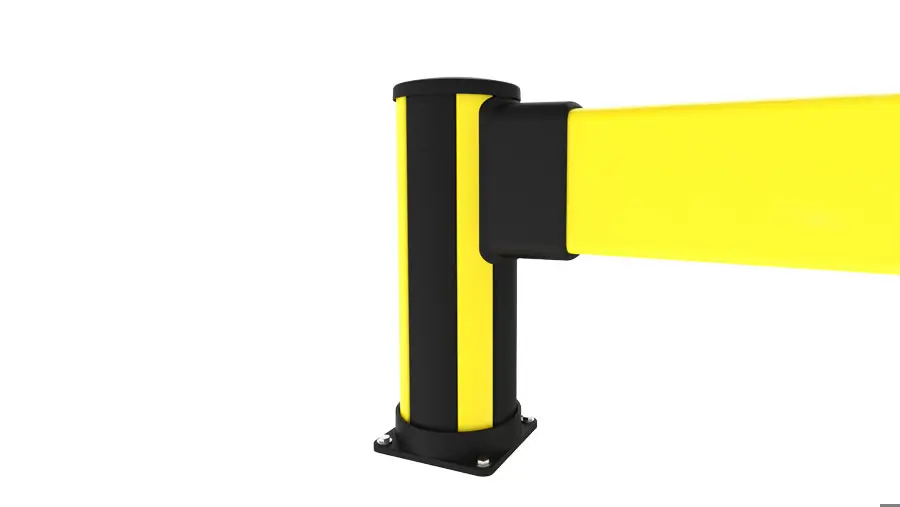

Use the X-Protect Impact High Barrier for high level impact protection. It is ideal for segregating light weight vehicles or defining warehouse zones. Our modular rails and bollards allow for damaged or worn parts to be replaced at a component level. If you need to replace any component - it is j...

Get your quote now
Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

Models

  • Posts

    6 Articles
    CAD Article Number Description Height (mm) Color
    BCC1-061-I100 Impact High corner 610 Zinc Yellow
    1
    BCC0-061-I100 Impact High corner 610 Zinc Yellow
    Graphite Black
    BCM1-061-I100 Impact High mid 610 Zinc Yellow
    1
    BCM0-061-I100 Impact High mid 610 Zinc Yellow
    Graphite Black
    BCE1-061-I100 Impact High end 610 Zinc Yellow
    1
    BCE0-061-I100 Impact High end 610 Zinc Yellow
    Graphite Black
  • Impact rails

    15 Articles
    CAD Article Number Description Length (mm) CC (mm) Color
    RCI1-277-0300 Impact rail 2770 3000 Zinc Yellow
    RCI1-227-0250 Impact rail 2270 2500 Zinc Yellow
    RCI1-177-0200 Impact rail 1770 2000 Zinc Yellow
    RCI1-127-0150 Impact rail 1270 1500 Zinc Yellow
    RCI1-077-0100 Impact rail 770 1000 Zinc Yellow
    RCI1-047-0070 Impact rail 470 700 Zinc Yellow
    RCI1-027-0050 Impact rail 270 500 Zinc Yellow
    RCI1-064-0087 Impact rail 640 870 Zinc Yellow
    RCI1-067-0090 Impact rail 670 900 Zinc Yellow
    RCI1-197-0220 Impact rail 1970 2200 Zinc Yellow
    RCI1-201-0224 Impact rail 2010 2240 Zinc Yellow
    RCI1-074-0097 Impact rail 740 970 Zinc Yellow
    RCI1-207-0230 Impact rail 2070 2300 Zinc Yellow
    RCI1-211-0234 Impact rail 2110 2340 Zinc Yellow
    RCI1-217-0240 Impact rail 2170 2400 Zinc Yellow

Downloads

Impact high

Product information

X-Protect Impact high

Assembly guide

X-Protect | Impact protection

Brochure

X-Protect Technical | Impact protection

Brochure

Product information

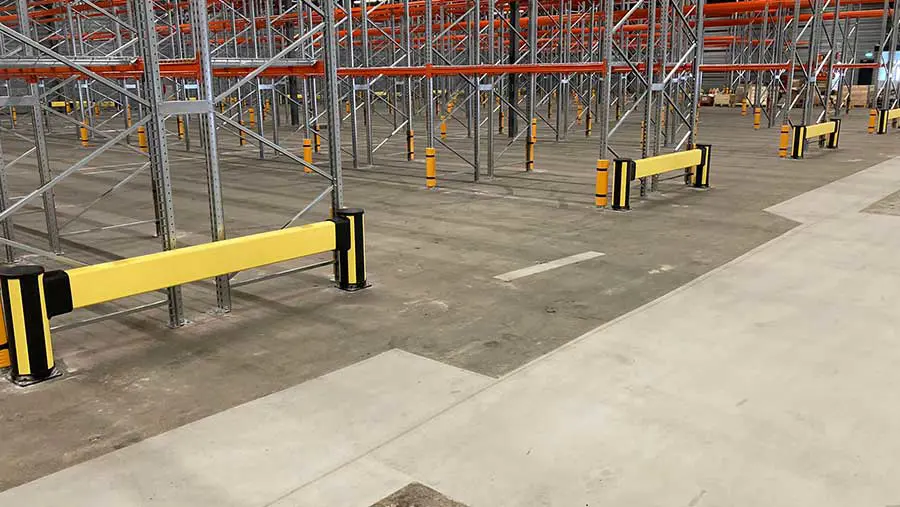

Use the X-Protect Impact High Barrier for high level impact protection. It is ideal for segregating light weight vehicles or defining warehouse zones.

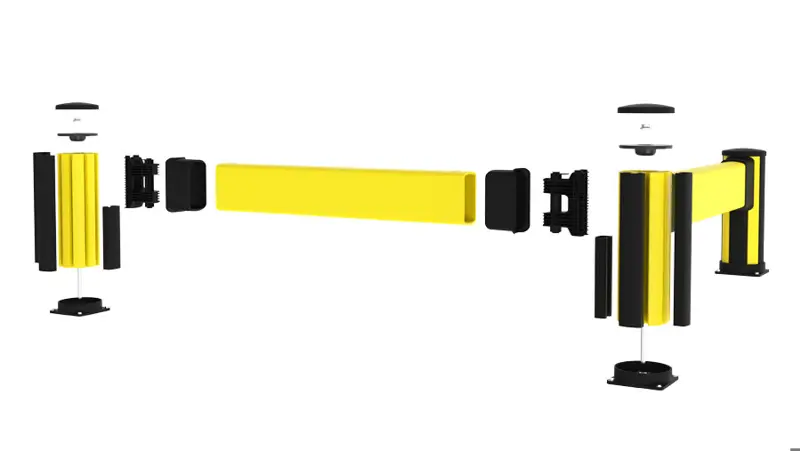

Our modular rails and bollards allow for damaged or worn parts to be replaced at a component level. If you need to replace any component - it is just a slide away.

X-Protect is a unique approach to safety barriers. Unrivalled modularity, using only a few system components and damping that is built in to create a barrier system that changes with your work place. X-Protect allows rapid transformation, repair or replacement of existing barriers and bespoke configurations are limitless.





Impact test results
Area of impact Load Equivalent to 90° Deflection Force to fixings
Centre of barrier C - C as below
2000mm 6200 J 2500 kg
8 km/h
5000 kg
5.6 km/h
430mm 14.5 kN
2500mm 5500 J 2500 kg
7.5 km/h
5000 kg
5.3 km/h
470mm 12.2 kN
3000mm 5200 J 2500 kg
7.3 km/h
5000 kg
5.1 km/h
520mm 10.4 kN
Posts
End post 2400 J 2500 kg
4.9 km/h
5000 kg
3.5 km/h
NA * 19.2 kN
Mid post 2400 J 2500 kg
4.9 km/h
5000 kg
3.5 km/h
NA * 18.1 kN

 * Deflection of posts is equivalent or less than that of the rail/s and is not considered to be critical for product selection. Performance is tested at height of the lowest rail. The post will perform better for lower strikes and deflection.
