X-Protect

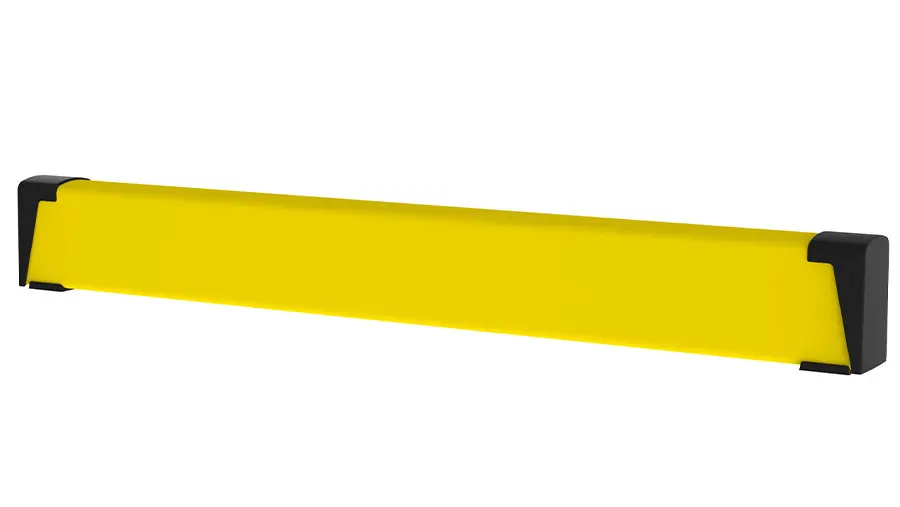

Standalone Floor Barrier

3D

Designed to serve as a standalone solution, it improves the safeguarding of building perimeters and vital infrastructure from the everyday risks of vehicle forks, pallets in transit, AMRs and AGVs, and other low-height hazards. It can be combined with our other impact protection products such as...

Get your quote now
Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

Models

  • End covers

    2 Articles
    CAD Article Number Description Height (mm) Color
    FCE3-022-I100-10 Floor barrier end - 10 pack 221 Graphite Black
    FCE3-022-I100-2 Floor barrier end - 2 pack 221 Graphite Black
  • Impact rails

    15 Articles
    CAD Article Number Description Length (mm) CC (mm) Color

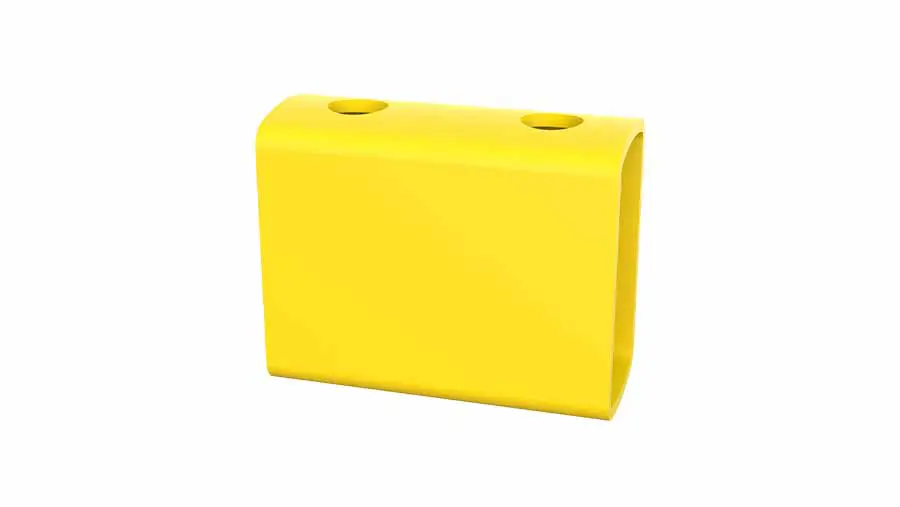

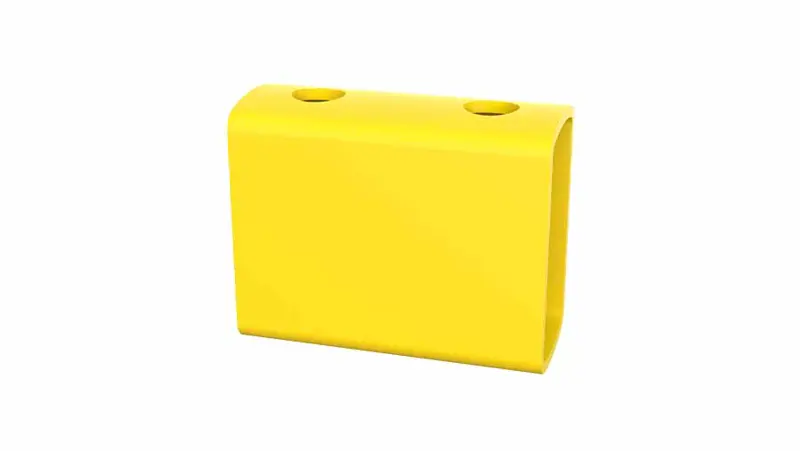

    RCI1-027-0050 Impact rail 270 500 Zinc Yellow

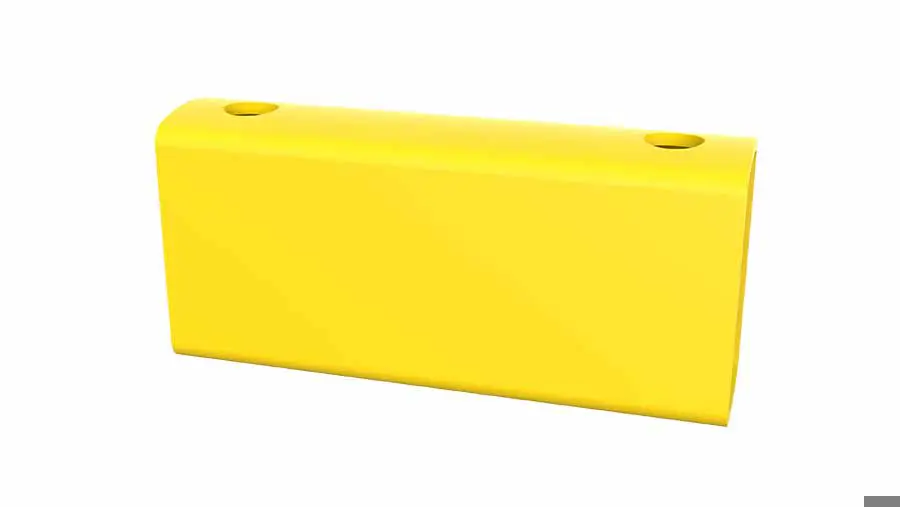

    RCI1-047-0070 Impact rail 470 700 Zinc Yellow

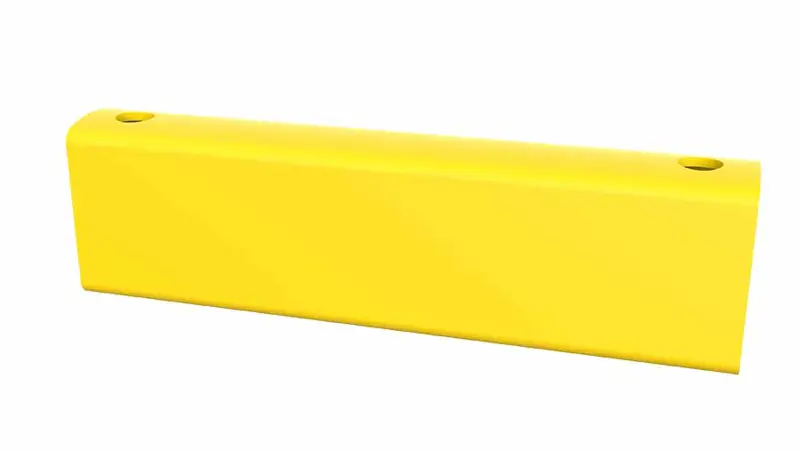

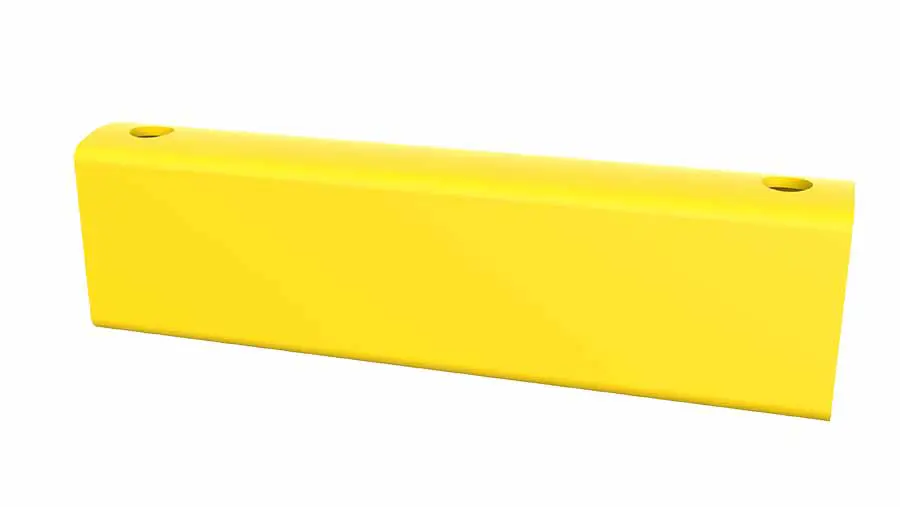

    RCI1-077-0100 Impact rail 770 1000 Zinc Yellow

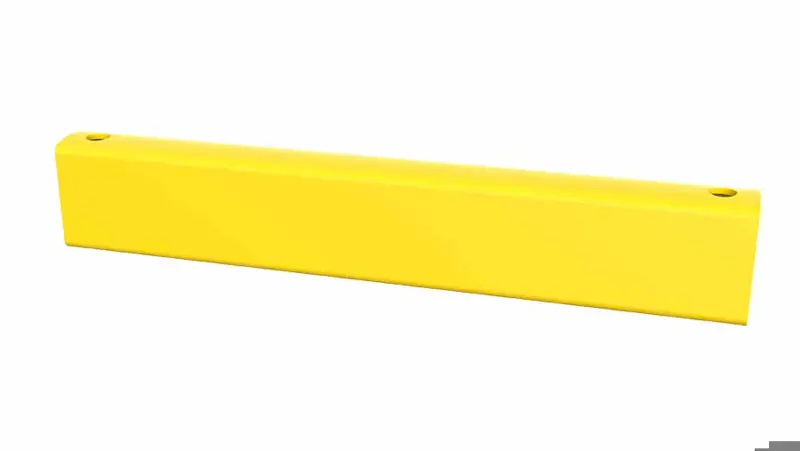

    RCI1-127-0150 Impact rail 1270 1500 Zinc Yellow

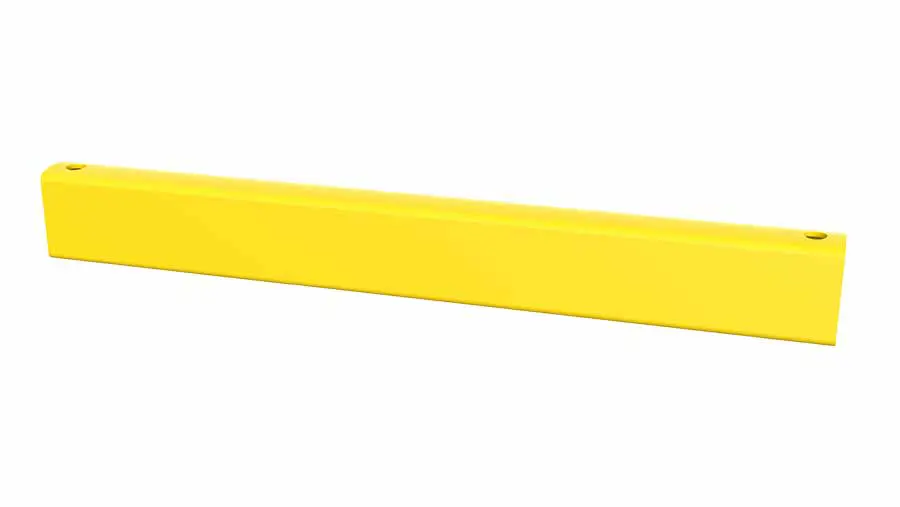

    RCI1-177-0200 Impact rail 1770 2000 Zinc Yellow

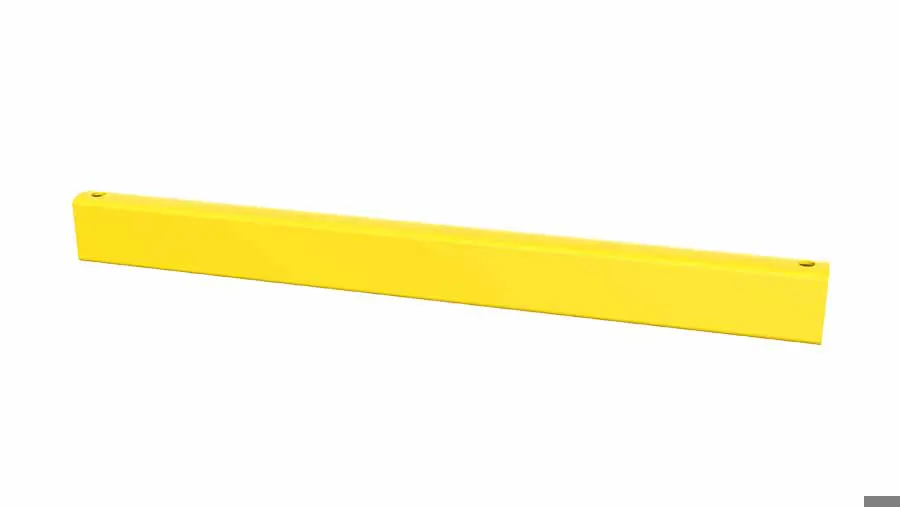

    RCI1-227-0250 Impact rail 2270 2500 Zinc Yellow

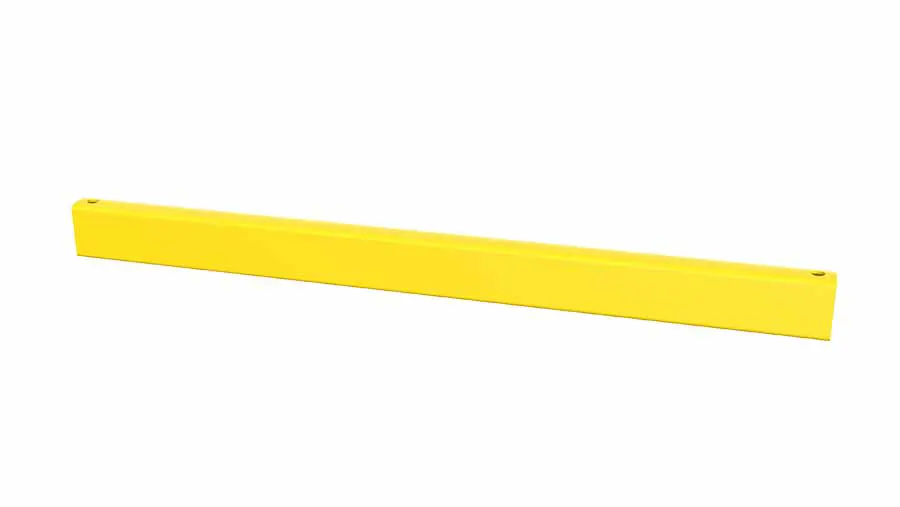

    RCI1-277-0300 Impact rail 2770 3000 Zinc Yellow
    RCI1-064-0087 Impact rail 640 870 Zinc Yellow
    RCI1-067-0090 Impact rail 670 900 Zinc Yellow
    RCI1-197-0220 Impact rail 1970 2200 Zinc Yellow
    RCI1-201-0224 Impact rail 2010 2240 Zinc Yellow
    RCI1-074-0097 Impact rail 740 970 Zinc Yellow
    RCI1-207-0230 Impact rail 2070 2300 Zinc Yellow
    RCI1-211-0234 Impact rail 2110 2340 Zinc Yellow
    RCI1-217-0240 Impact rail 2170 2400 Zinc Yellow

Downloads

Standalone Floor Barrier

Product information

X-Protect_Floor_barrier

Assembly guide

X-Protect | Impact protection

Brochure

X-Protect Technical | Impact protection

Brochure

Product information

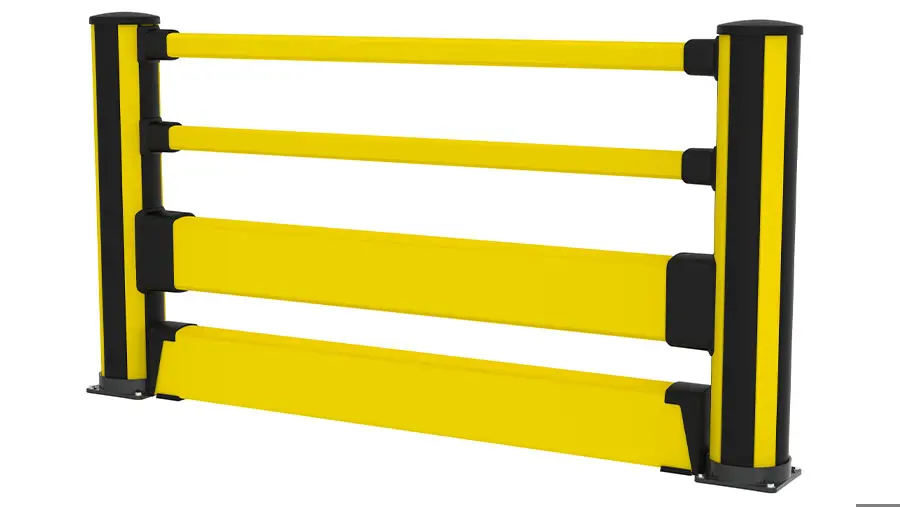

Designed to serve as a standalone solution, it improves the safeguarding of building perimeters and vital infrastructure from the everyday risks of vehicle forks, pallets in transit, AMRs and AGVs, and other low-height hazards. It can be combined with our other impact protection products such as Impact High and Pedestrian barriers.

With a requirement of two fixings per section, even for spans up to 2.77 meters, its setup is straightforward and minimally invasive. This streamlined installation process saves time and decreases the need for modifications to your existing layout.


The Floor Barrier's performance is both reliable and formidable, capable of withstanding impacts up to 3000 J with less than 200mm deflection over a span of 1.77 meters.

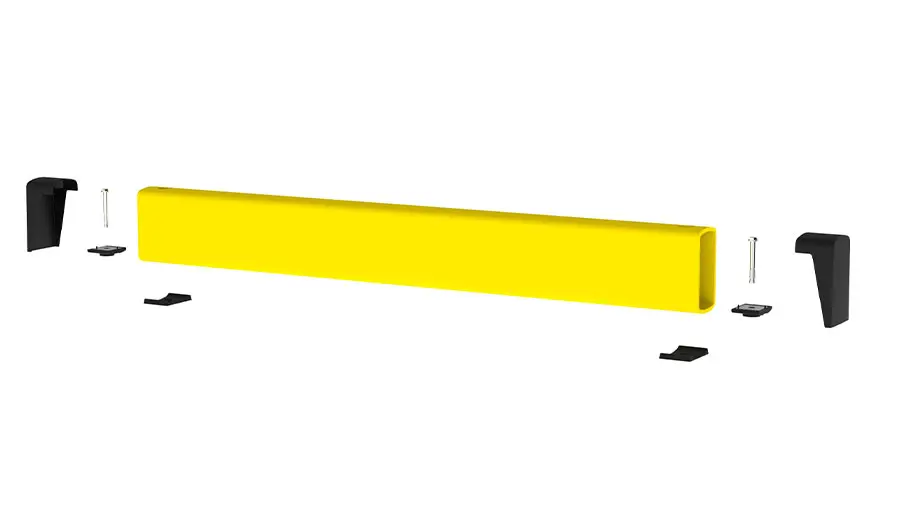

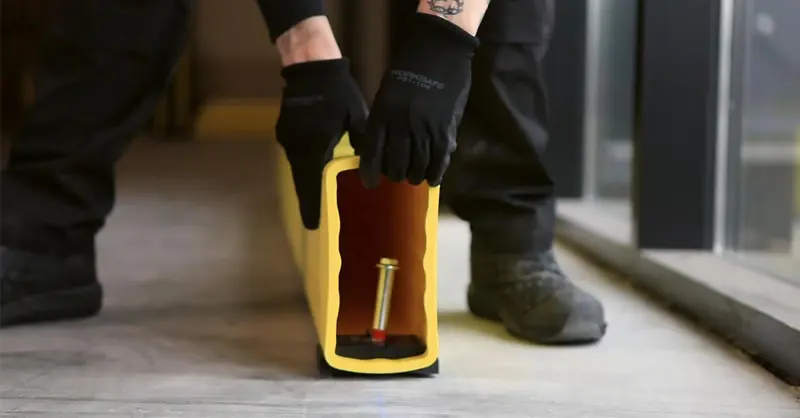

Ease of installation, complemented by push-fit parts and heavy-duty expansion bolts, marries well with the system's adaptability. With our drilling template, adjustments can be made swiftly, allowing the Floor Barrier system to evolve in tandem with the shifting safety requirements of your workspace.



Floor barrier test results
Length Load Equivalent to 90° Deflection Force to fixings
1700mm 3000 J 2500 kg
5.6 km/h
5000 kg
4 km/h
200mm 14.9 kN
2270mm 3000 J 2500 kg
5.6 km/h
5000 kg
4 km/h
240mm 13.8 kN
2770mm 2700 J 2500 kg
5.3 km/h
5000 kg
3.7 km/h
270mm 14.7 kN
See the product in Axelent Xperience
Related articles
Axelent's Floor Barrier, An Innovative Safety Solution

13 Aug 2024 • Impact protection, Impact protection, Crash barrier, We are all about safety

Axelent's Floor Barrier, An Innovative Safety Solution
Axelent Is Your Complete Industrial Safety Supplier

13 June 2024 • About Axelent, World of Axelent, News, FAQ, Machine Safety, Fall protection, X-Guard, Impact protection, We are all about safety, Cable tray

Axelent Is Your Complete Industrial Safety Supplier

Related products

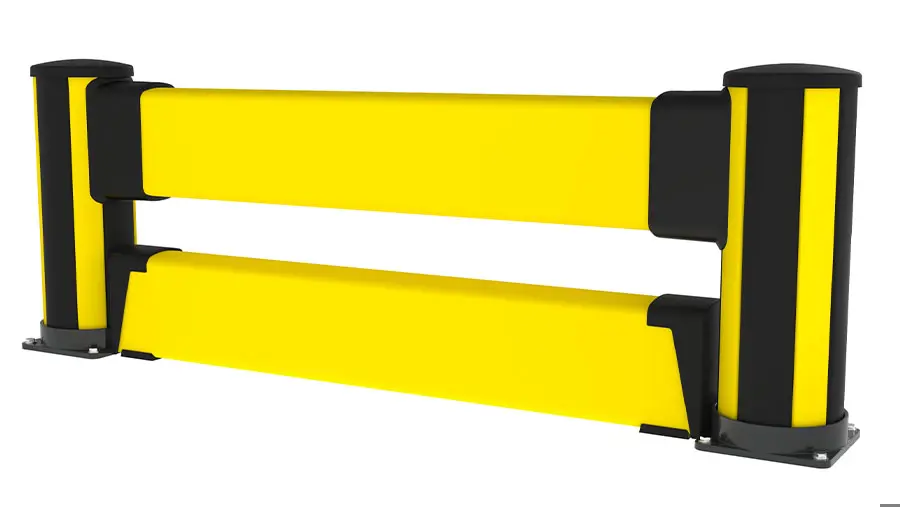

Impact High with Floor Barrier

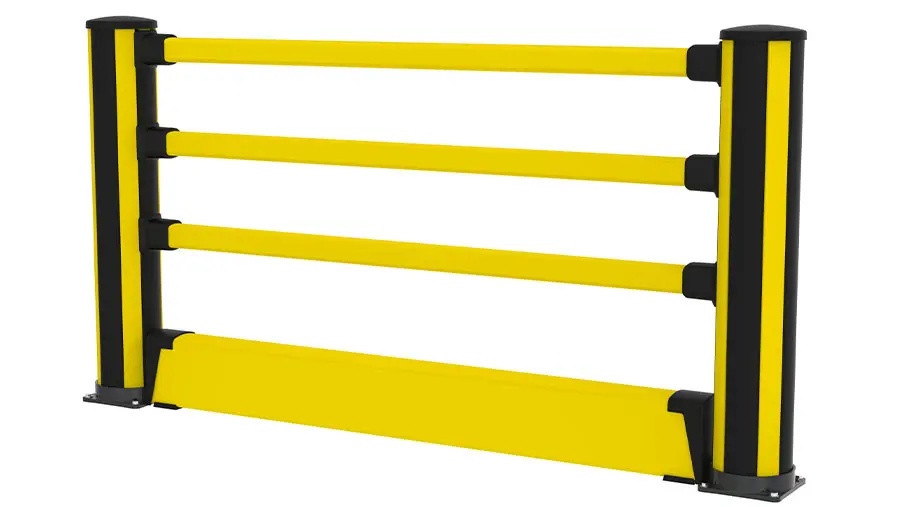

Pedestrian with Floor Barrier
