Impact protection
X-Protect is Axelent's range of impact protection. We offer all impact protection you need, from bollards to safety barriers, column guards and pedestrian barriers.
X-Protect

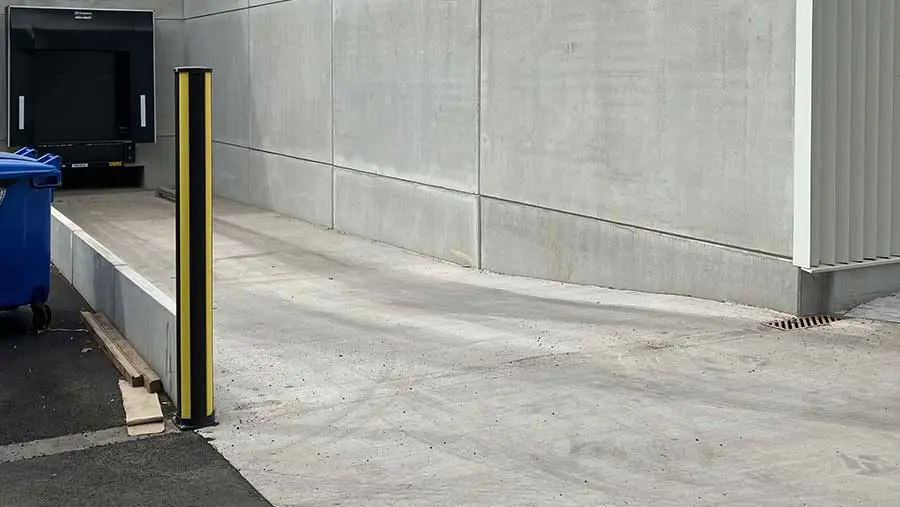

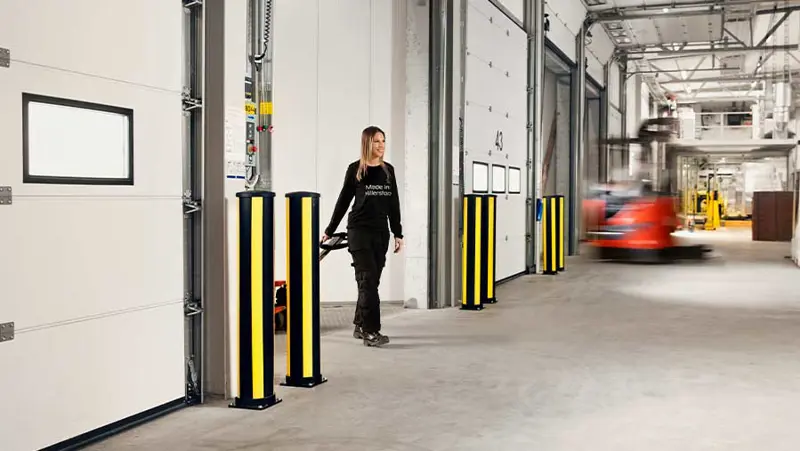

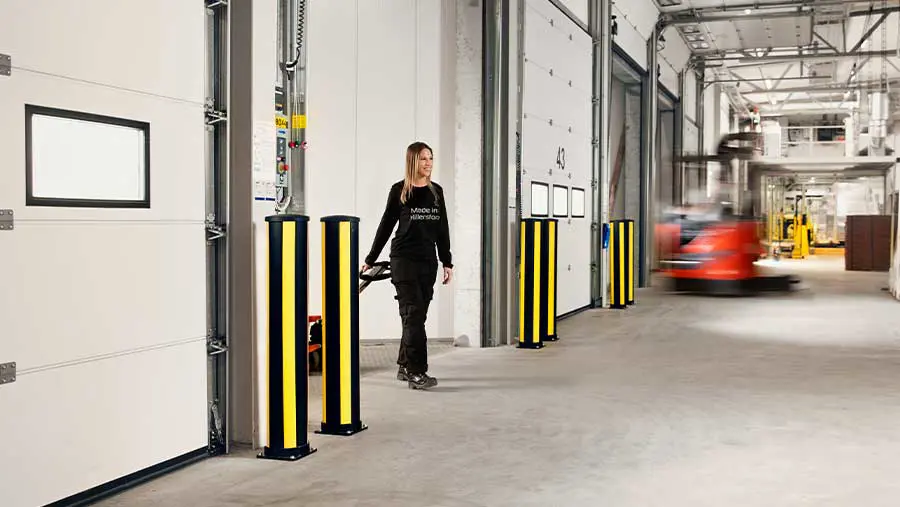

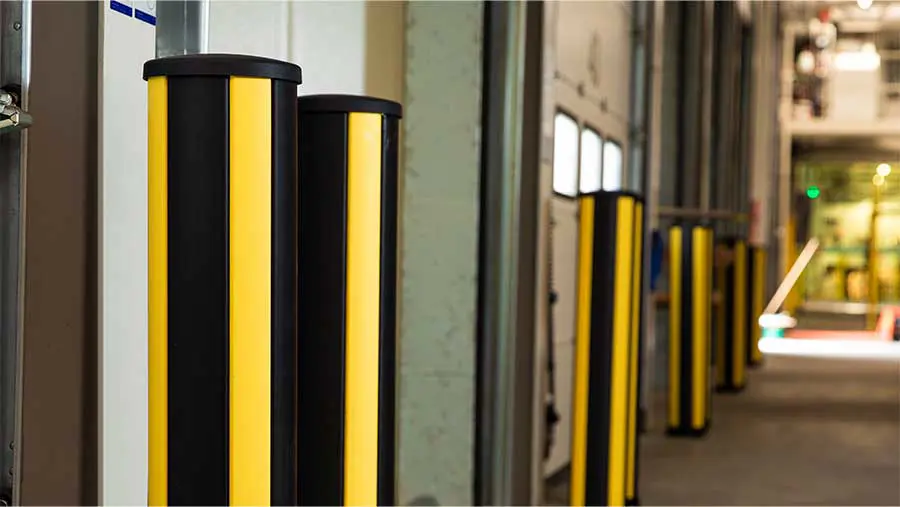

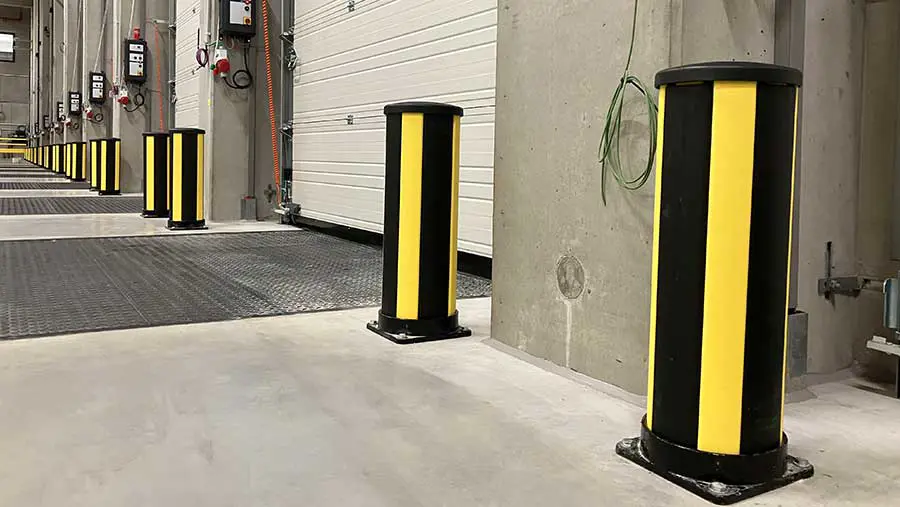

Use our X-Protect bollards to protect doorways, exposed corners and machinery. The black and yellow bollards also attract the fork lift driver’s attention and act as guidance along traffic routes. The bollars are available in four different sizes from 350-1160 mm. X-Protect bollards can also be...
| CAD | Article Number | Description | Width (mm) | Height (mm) | Color | |
|---|---|---|---|---|---|---|
|
|
BCP0-116-0000 | Bollard | 200 | 1160 |
Zinc Yellow Graphite Black |
1
|
|
|
BCP1-116-0000 | Bollard | 200 | 1160 | Zinc Yellow |
|
|
|
BCP0-087-0000 | Bollard | 200 | 870 |
Zinc Yellow Graphite Black |
1
|
|
|
BCP1-087-0000 | Bollard | 200 | 870 | Zinc Yellow |
|
|
|
BCP0-061-0000 | Bollard | 200 | 610 |
Zinc Yellow Graphite Black |
1
|
|
|
BCP1-061-0000 | Bollard | 200 | 610 | Zinc Yellow |
|
|
|
BCP0-035-0000 | Bollard | 200 | 350 |
Zinc Yellow Graphite Black |
1
|
|
|
BCP1-035-0000 | Bollard | 200 | 350 | Zinc Yellow |
|

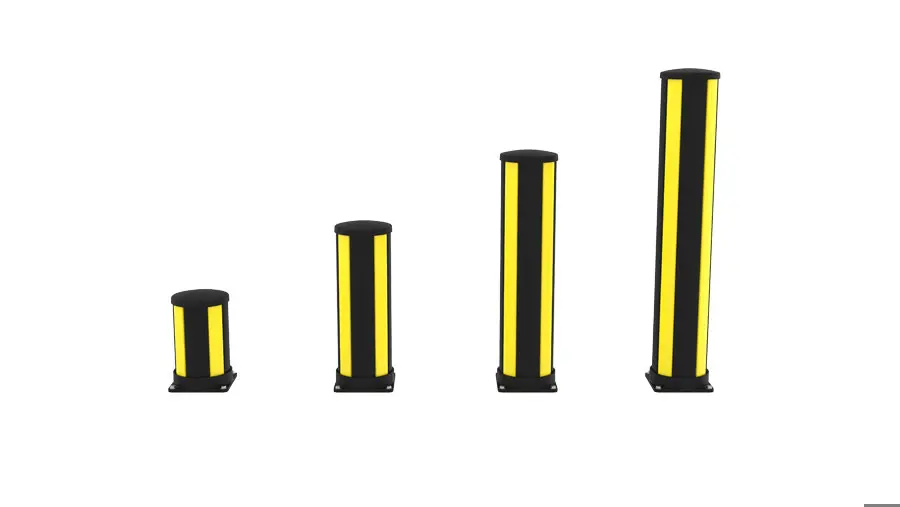

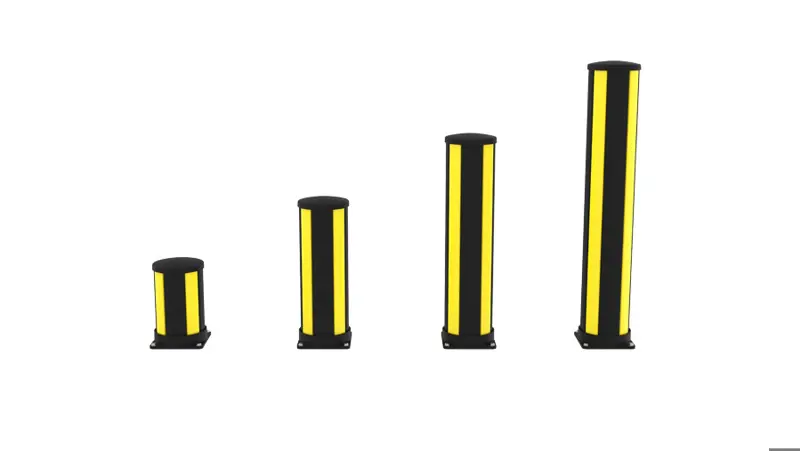

Use our X-Protect bollards to protect doorways, exposed corners and machinery. The black and yellow bollards also attract the fork lift driver’s attention and act as guidance along traffic routes. The bollars are available in four different sizes from 350-1160 mm.
X-Protect bollards can also be integrated in X-Guard machine guard.

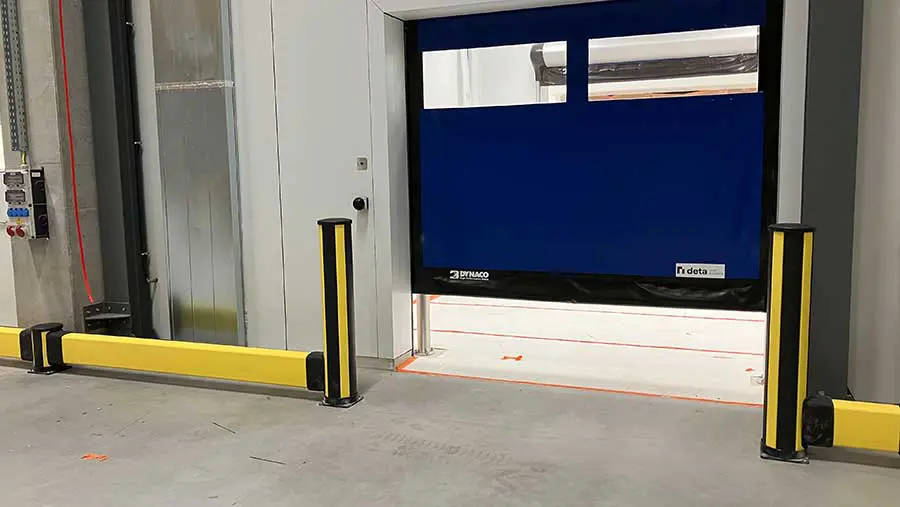

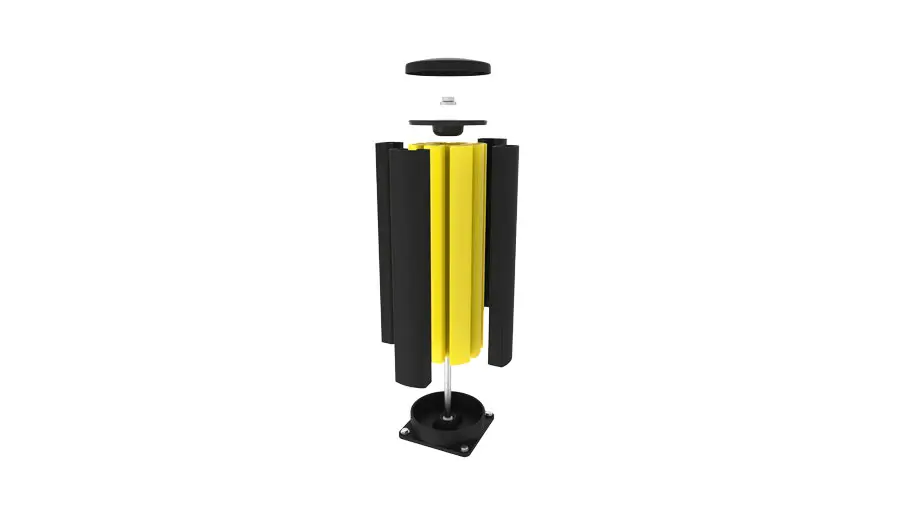

X-Protect is a unique approach to safety barriers. Unrivalled modularity, using only a few system components and damping that is built in to create a barrier system that changes with your work place. X-Protect allows rapid transformation, repair or replacement of existing barriers and bespoke configurations are limitless.
| Impact test results | |||||
| Bollard height | Load | Equivalent to | 90° Deflection | Force to fixings | |
| 350mm | 3200 J | 2500 kg 5.7 km/h |
5000 kg 4 km/h |
NA* | 18 kN |
| 610mm | 5250 J | 2500 kg 7.3 km/h |
5000 kg 5.2 km/h |
300mm | 19.5 kN |
| 870mm | 5250 J | 2500 kg 7.3 km/h |
5000 kg 5.2 km/h |
420mm | 17.5 kN |
| 1160mm | 5250 J | 2500 kg 7.3 km/h |
5000 kg 5.2 km/h |
620mm | 12 kN |
* Due to the bollard height, it is considered that the deflection is not critical for product selection.
